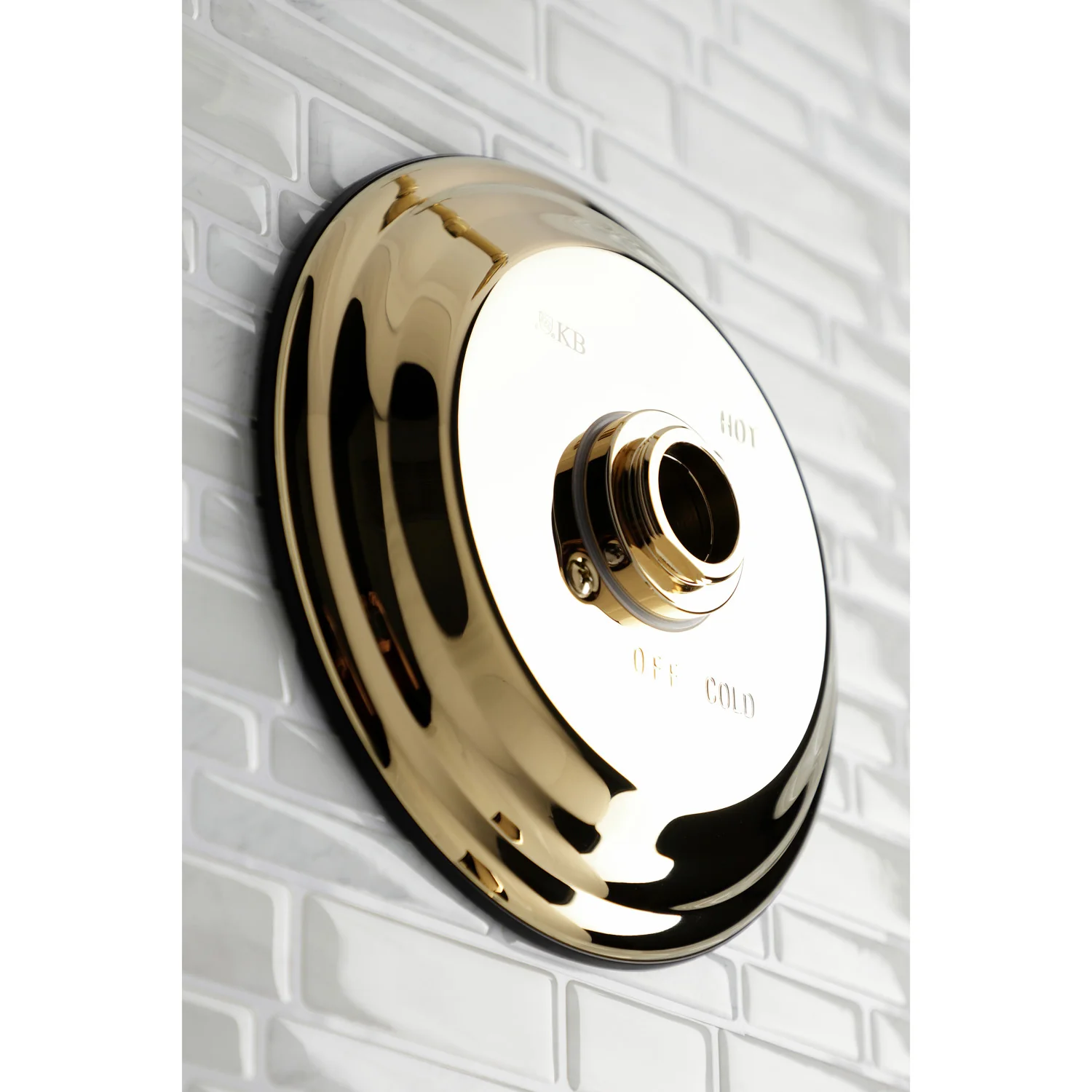

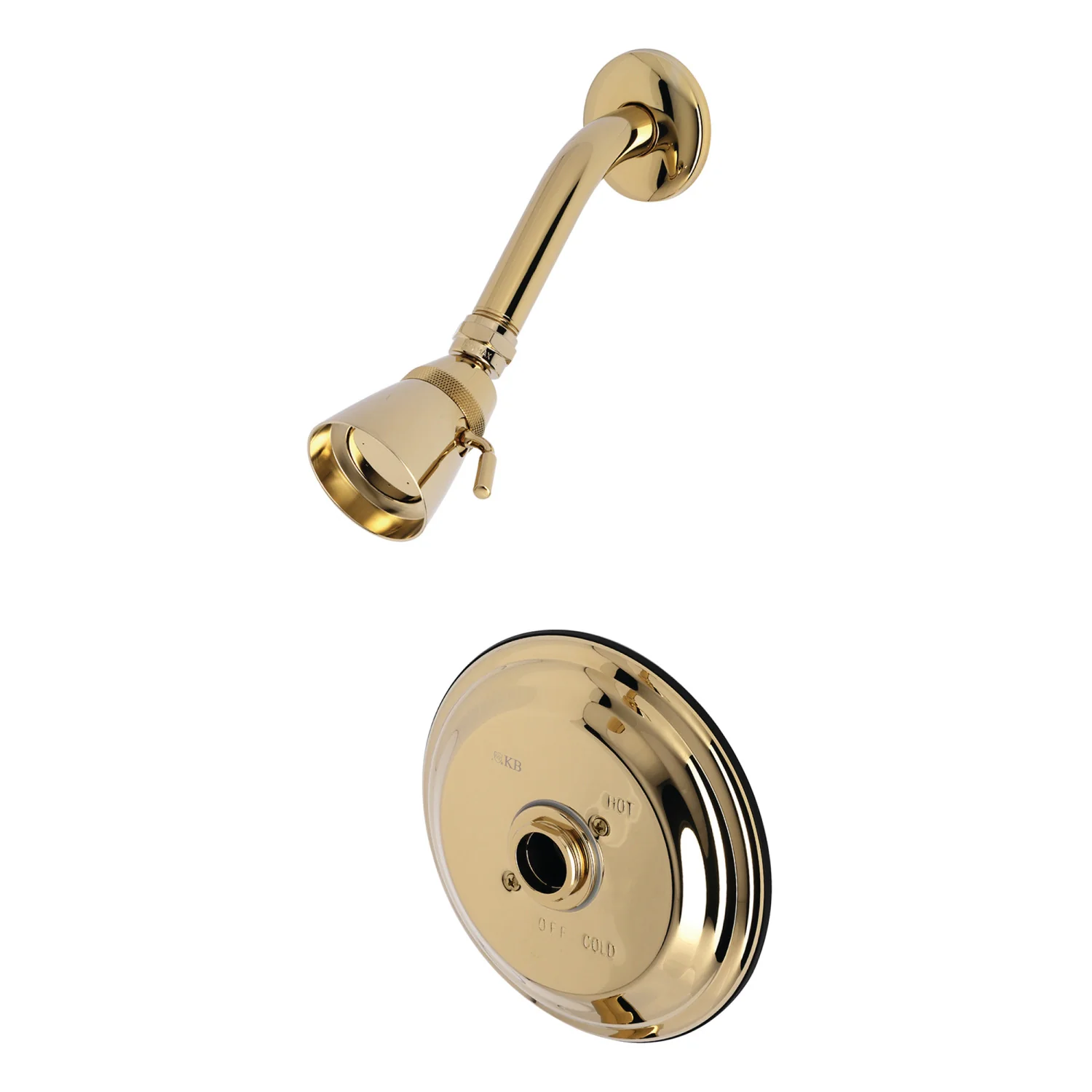

Kingston Tulare KB3632TSLH Single-Handle Pressure Balanced Shower Faucet, Trim Only without Handle, Polished Brass

Kingston Tulare KB3632TSLH Single-Handle Pressure Balanced Shower Faucet, Trim Only without Handle, Polished Brass

An optimum bathing experience awaits with this easily customizable trim kit. Enjoy the sturdy brass construction and premium polished brass for a fixture that will last for years to come and select a handle of your choice to complete your design. Valves and handle(s) sold separately.

ADA compliance for faucets ensures accessibility for individuals with disabilities. Faucets must be designed for easy operation by persons with mobility issues, featuring lever handles that require minimal effort to turn on and off. These elements promote independence and safety, allowing individuals with mobility impairments to use the faucets with ease and dignity, in line with the Americans with Disabilities Act (ADA).

Features

• Item weight: 2.75 lbs.
• Solid brass construction for durability and reliability
• Wall mount installation
• Cartridge sold separately, designed to accommodate pressure balanced washerless cartridge
• Standard 1/2-14 NPT connection
• 1.8 GPM/6.8 LPM showerhead flow rate at 80 PSI
• Overall dimension of faucet: (D)7-1/8" (181.10 mm) x (H)2-3/8" (60.45 mm)
• Handles sold separately
• 7-1/2" faceplate diameter
• Tub spout sold separately
• 7-1/8" shower arm reach including shower head
• 2-1/4" showerhead diameter
• Shower trim only; valves sold separately
• Must purchase valve item # KB3632V to complete trim kit

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide

Compatible Parts

Compatible parts and components for this item. Please also ensure each selected additional item is compatible as appropriate.

Valve: KB3632V
