Kingston Heirloom CC43108VOKB30 - Trimscape Traditional Plumbing Sink Trim Kit with P-Trap and Overflow Drain, Brushed Nickel

Kingston Heirloom CC43108VOKB30-Trimscape Traditional Plumbing Sink Trim Kit with P-Trap and Overflow Drain, Brushed Nickel

This traditional style vessel sink plumbing kit consists of all the necessary parts for installing a waste water draining system. The parts included are single handle 1/2-14 NPT x 3/8" O.D. compression angle stop, 30" bullnose lavatory supply lines, 1/2" IPS bell flanges, a 1-1/4" P-trap and a drain with mounting ring. Constructed of high quality material and a tarnish-resistant finish, designed for long-lasting performance. Available in a variety of stunning finishes ready to match any home decor.

Features

• Solid brass construction
• Supply and p-trap plumbing trim kit for bathroom sinks

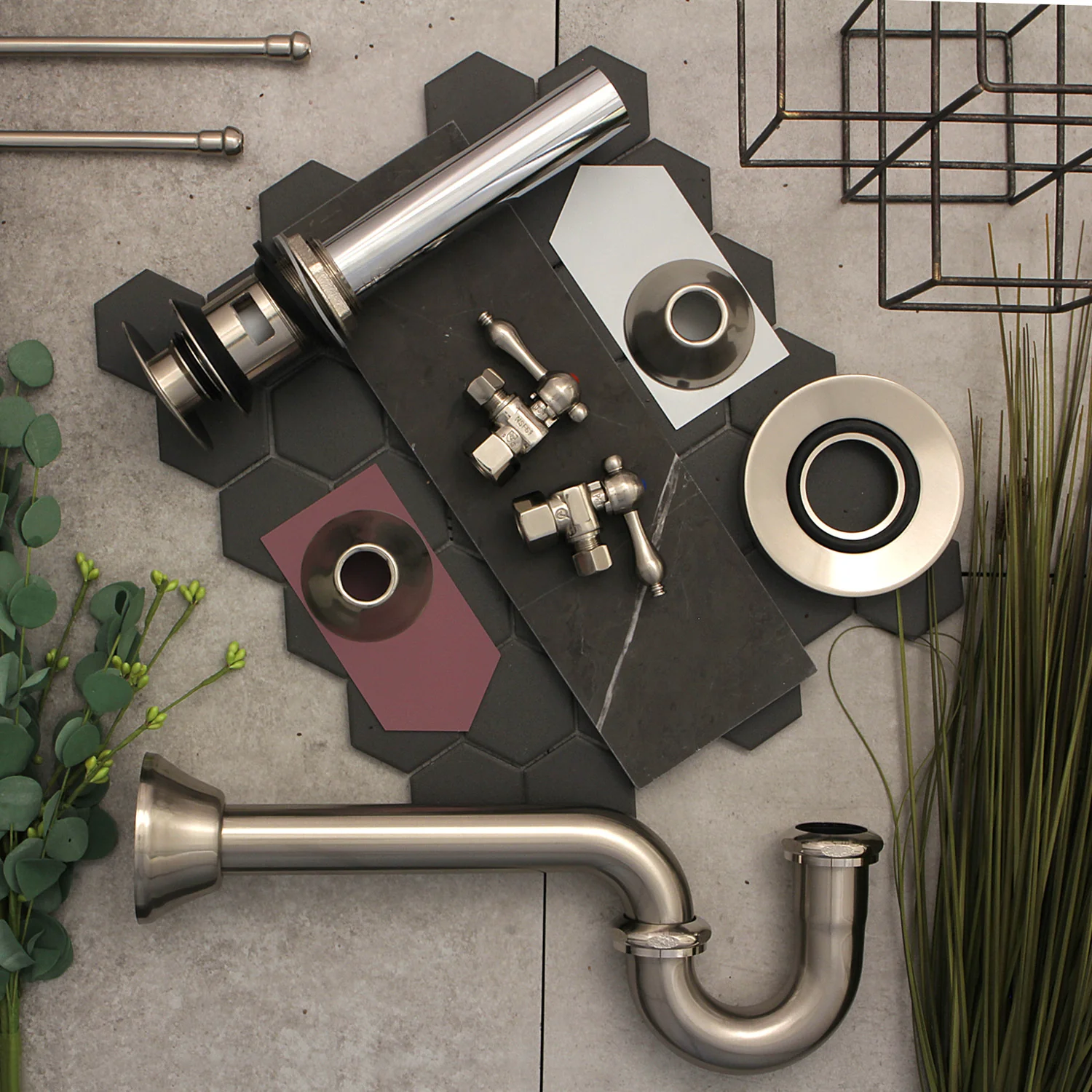

• Kit contains: 2 angle stops, 2 wall flanges, 2 supply lines, 1 p-trap, 1 p-trap wall flange, 1 drain, 1 mounting ring
• Angle stops designed to fit 1/2" NPT male (exterior threads) stub-out
• Angle stop inlet is 1/2" NPT female (interior threads)
• Angle stop outlet is 3/8" O.D. compression (compression slip fit)
• Angle stops include traditional lever handle
• Includes (2) 2-3/8" bell flanges to cover any unsightly holes
• Two pieces 3/8" x 30" bull nose rigid supply lines
• One traditional style p-trap with flange
• P-trap is 1-1/4" diameter for bathroom sink drains
• P-trap measures 12" from drain inlet center to wall-end
• One pop-up drain with overflow and mounting ring kit for vessel sink
• 22 gauge 1-1/4" O.D. push-up pop-up drain with overflow hole

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide

Compatible Parts

Compatible parts and components for this item. Please also ensure each selected additional item is compatible as appropriate.

Tailpieces: EVP1008
